Munisi

Mortar Kaliber 81mm

Mortar Kaliber 81mm

Jenis-jenis mortar kaliber 81mm Pindad adalah :

  1. MU29 AS SMOKE MORTAR BOMB
  2. MU29 LAT A2 GRANAT MORTIR LATIH
  3. MU29 LAT A1 GRANAT MORTIR LATIH
  4. MU29 PE HE MORTAR BOMB

Detail Description
MU29 PE AMMUNITION Weight :4, 630 G COMPONENTS Body : Forged Steel Tailuntit : Alumunium Alloy Fuze : Point detontion ( delay and super quick) Charges :TNT 740 g CHARACTERISTIC Muzzlevelocity : 67 to 353 m/s Opererating ring :min. 100 m, max. 6,500 m

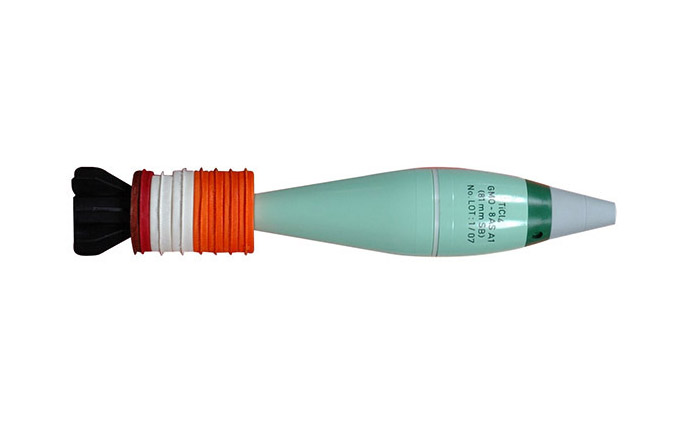

MU29 AS AMMUNITION Weight :4.630 g COMPONENTS Body : Forged Steel Tailuntit : Alumunium Alloy Fuze : Point detontion ( delay and super quick) CHARACTERISTIC Muzzlevelocity : 67 to 353 m/s Opererating ring :min. 100 m, max. 6,500 m Duration of smoke : Approx 40 sec.

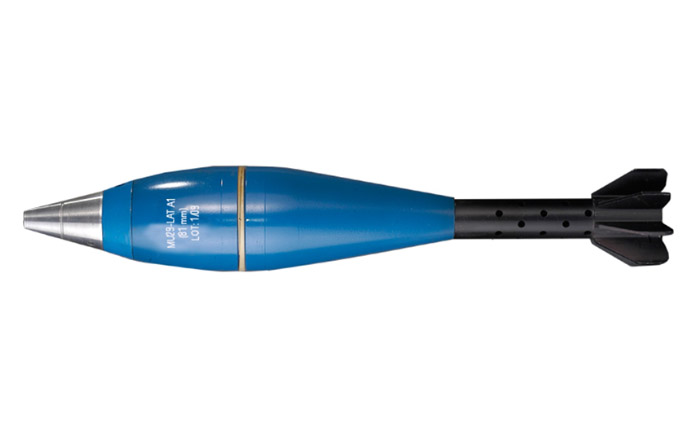

MU29 LAT A1 USE This can be use for practice need AMMUNITION • Diameter : 81 mm • Length ; 489 mm • Weight : 4.630 g CHARACTERISTIC • Propulsion system :ammunition cal. 7.62

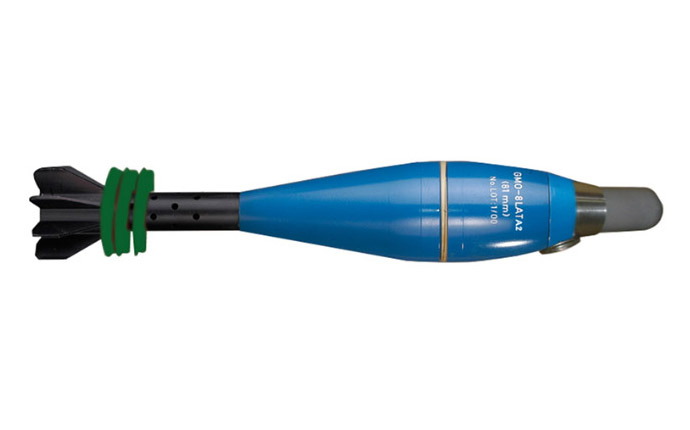

MU29 LAT A2 USE This can be use for practice need AMMUNITION • Diameter : 81 mm • Length ; 503 mm • Weight : 4.550 g CHARACTERISTIC • Muzzlevelocity : dengan sudut tembak 45o ( 800%)
