Munisi

mu27-pe

mu27-pe

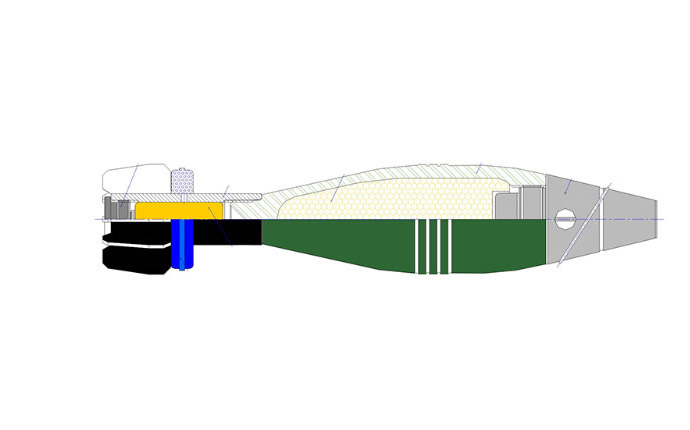

60 mm HE COMMANDO MORTAR BOMB.

Fitur

Spesifikasi

Detail Description
Ammunition Weight : 1,610 Overall Length : 300 mm Diameter : 60 mm Colour : Army Green
Components Body : Forged Steel Tail Unit : Alumunium Alloy Fuze : Point Detonating (Delay & Super quick) Charges : TNT 200 g Propulsion System : - Primer - Ignition Cartridge with 1 Increment Charge
Characteristics Muzzle Velocity : 57 to 94.4 m/s Operating Ring : Min. 50 m ; Max. 800 m
Packing Inner Packing : - One bomb in a cardboard cylinder - Three cardboard cylinders linked with nylon carrier Outer packing : Wooden Box Containing 9 Bombs Detail of Outer packing : - Dimension (mm) : 368 (L) x 263 (W) x 263 (H) - Gross Weight (kg) : 25
